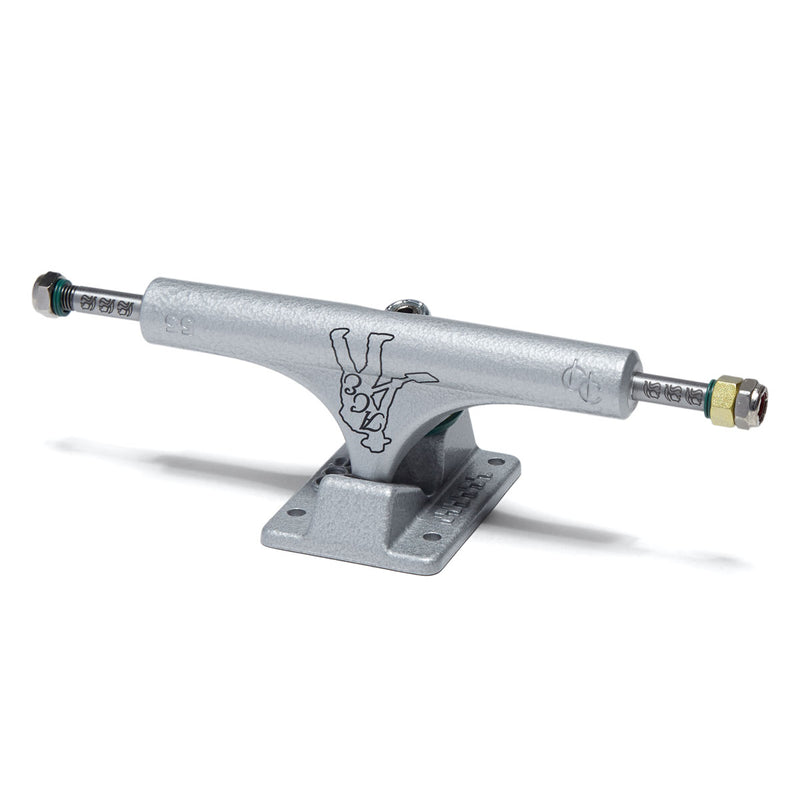

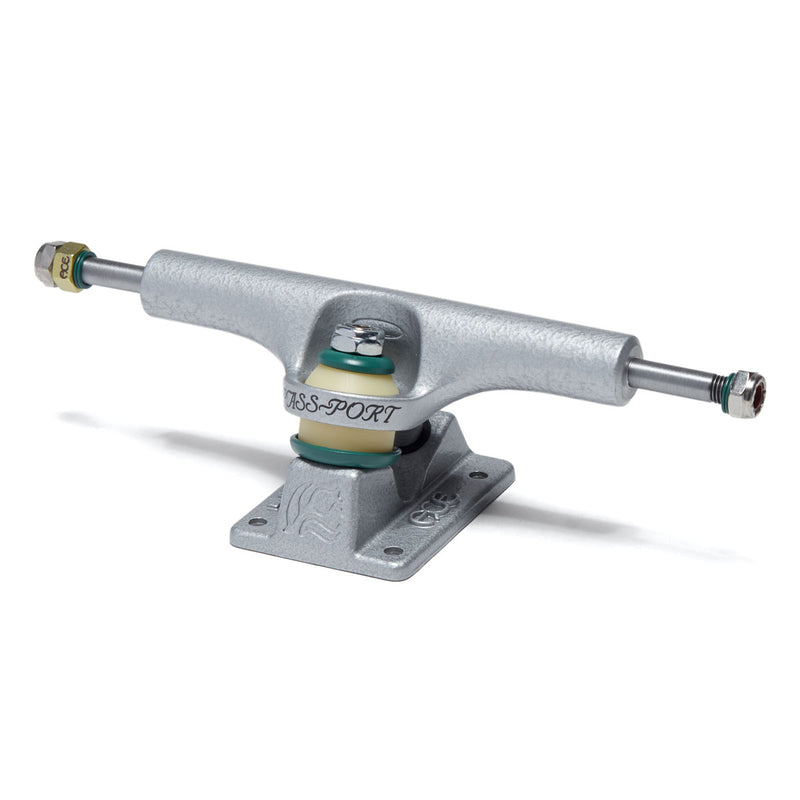

Ace x Passport AF1 Limited Hollow Skateboard Trucks


Ace x Passport AF1 Limited Hollow Skateboard Trucks
Free & Fast Shipping. On orders $75+. Orders placed by 3pm ET ship out same business day. Details here.
Free Returns. On Clothing, Shoes, & Accessories. Clearance items (prices in red) are final sale. Details here.
CCS+ Members. Free 2-3 Day Shipping, exclusive access to product raffles, member events, and more. Learn More.
-
- Ace x Passport Special Edition truck
- Hammertone print and collab embellishments produced in limited quantity
- Manufactured with high-quality AA 356.2 alloy using our own proprietary casting method
- True T6 heat-treated baseplates and hangers
- SAE 4140 steel alloy axles, oversized to eliminate bearing wobble
- Patent pending rethreading axle nuts - no more damaged axle ends
- Durable Hand-poured 96a urethane pivot bushings for better response
- Refined suspension for a cleaner turn
- Top Bushing: 12mm tall | 91a hardness
- Bottom Bushing: Bottom 14mm tall | 86a hardness
- Machine-faced hanger ends for precise bearing contact
- Each truck includes bonus orange Ace x Carhartt WIP Axle Re-Theader Die
- Ace AF1 vs. Classic Size Chart
- Imported
For more information about truck size, view our Skateboard Trucks Buyer's Guide.
-
-
Axle:
?The axle extends through the hanger and is where the wheels attach
-
Class:
?How and with what material the trucks are constructed.
-
Hanger:
?The width of your hanger, not including the axle.
-
Height:
?The taller the truck, the bigger the wheels.
-
Truck Size:
?The width of the truck, There is no Industry Standard but check our buyers guide for more info.
-
Axle:
Buyers Guide: Trucks
Truck Height:
Trucks generally come in LOW, MID, and HIGH styles.
LOW trucks are best for beginners because they are extra stable. They are also great for flip tricks for that reason.
MID trucks are the most common and versatile trucks, and are great for street or park skating.
HIGH trucks are best for cruising, carving and overall less technical skating.
The axle width, as a general rule, should be similar to the width of the deck.
Hanger Size | Axle (In.) |
|
109 | 6.5 - 7.5 | Under 7.4 |
129 | 7.6 - 8 | 7.4 - 7.75 |
139 |
|
7.75 - 8.25 |
149 |
|
8.25 - 8.75 |
169 | 8.9 - 10 | 8.75 - 9.50 |
215 | 10+ | 10+ |
New Chart:
Truck Size | Axle Width |
Deck Width
|
109mm | 6.50" - 7.50" | 7.00" |
129mm | 7.60" - 8.00" | 7.50" - 7.75" |
139mm |
8.00" - 8.25"
|
8.00" - 8.25" |
149mm |
8.25" - 8.90"
|
8.25" - 8.50" |
169mm | 8.90" - 10.00" | 9.00" - 9.40" |
